Models & Specifications

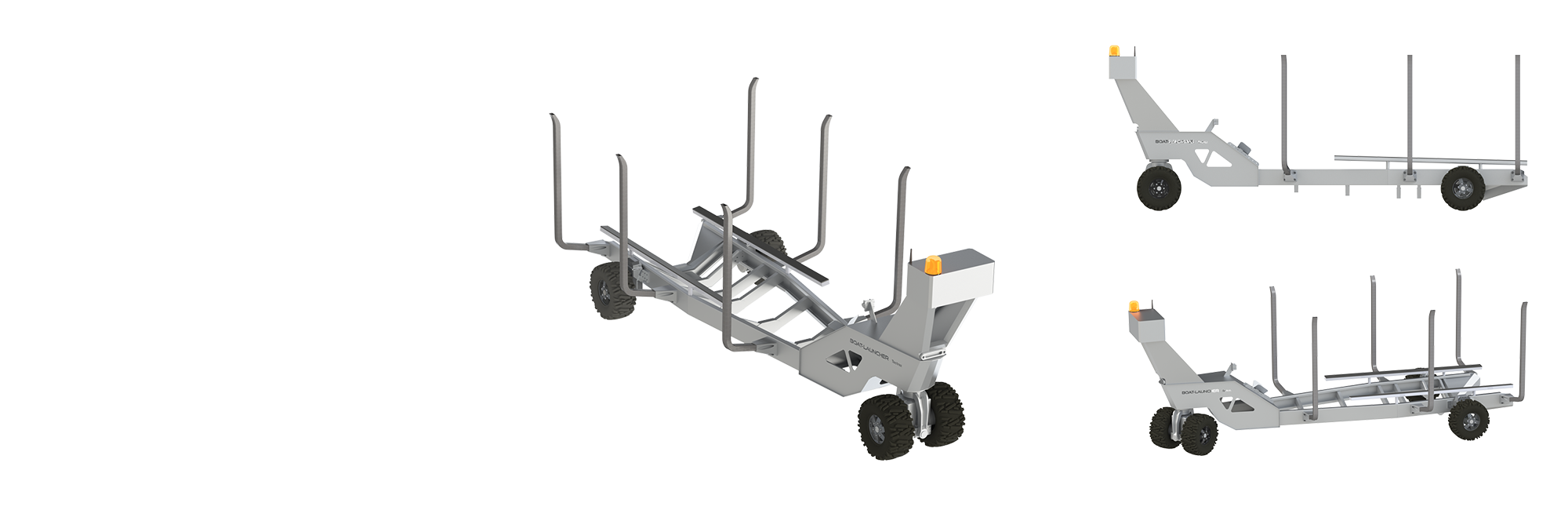

2WD
Choose your Launcher
STARTING FROM $63,250*
boat range: 4.5-5.9m
Effortless launches for small boats and easy-access ramps
-
Size range: 4.5-5.9 m
Vessel weight: 1000 kg
Payload: 500 kg
Launcher weight: 600 kg
Gross Combined Mass GCM: 2100 kg
Total Combined Vessel + Payload: 1500 kg
Number of Wheels: 3
Number of driven wheels: 2
Launcher length past the hull (bow): 0.8 m
Launcher beam past the hull (inc poles): 0.2 m
Ground to keel Height (average Deep V Hull): 0.5 m
Frame thickness: 5 mm
Bunk adjustments: 4x 20 mm
Guide poles: 4
Recover points: Yes
Boat Catch: Yes
Plastic lined boat bunks: STD -
Number of batteries (standard): 2
Batteries: 48V LiFePO4
Battery capacity: 3.2 kWH
Range (est): 6-8 km
Top Speed: 8 km/h
Power (Peak): 11520 kW
Total Weight per wheel: 700

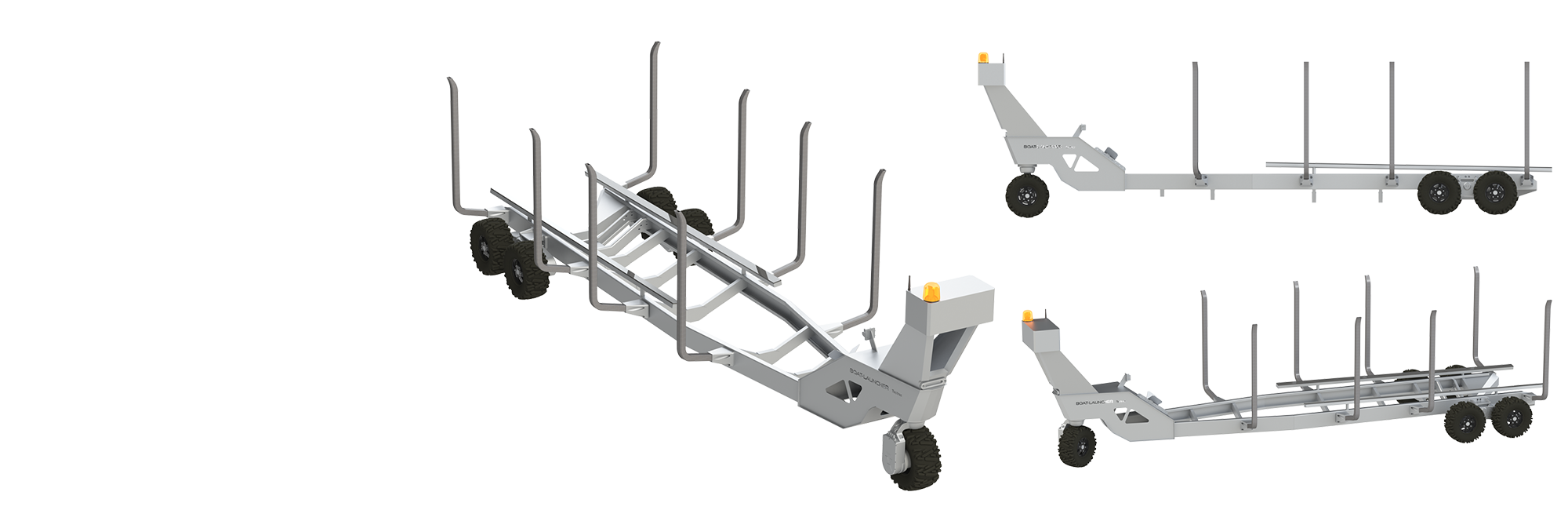

5WD
The Boat-Launcher by Tectrax™ range is engineered to deliver a smooth, effortless launch experience across all terrains, with models adaptable to a wide variety of boat sizes. Explore the specs and find the perfect fit for your vessel.
boat range: 8.1-9m
Power with stability for serious offshore-ready boats.
-
Size range: 8.1 - 9 m
Vessel weight: 4000 kg
Payload: 900 kg
Launcher weight: 1000 kg
Gross Combined Mass GCM: 5900 kg
Total Combined Vessel + Payload: 4900 kg
Number of Wheels: 5
Number of driven wheels: 5
Launcher length past the hull (bow): 0.8 m
Launcher beam past the hull (inc poles): 0.2 m
Ground to keel Height (average Deep V Hull): 0.5 m
Frame thickness: 6 mm
Bunk adjustments: 8× 30 mm
Guide poles: 8
Recover points: Yes
Boat Catch: Yes
Plastic lined boat bunks: STD -
Number of batteries (standard): 5
Batteries: 48V LiFePO4
Battery capacity: 8 kWH
Range (est): 6-8 km
Top Speed: 8 km/h
Power (Peak): 28800 kW
Total Weight per wheel: 1250 kg
*price in nzd, gst included

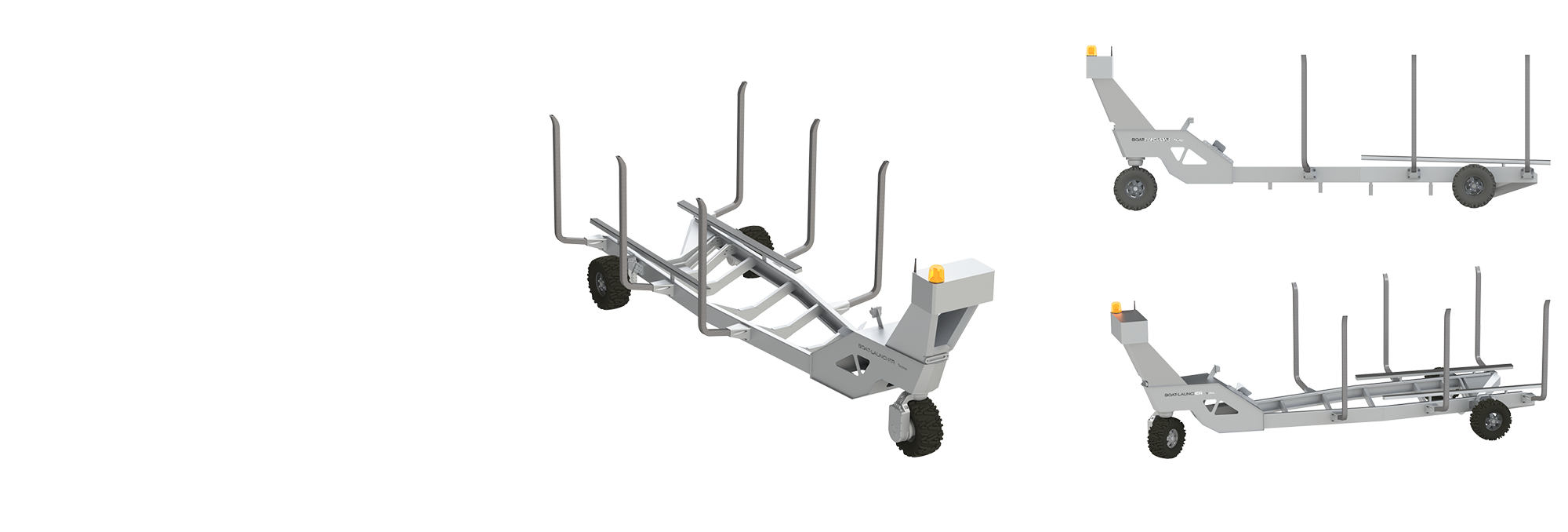

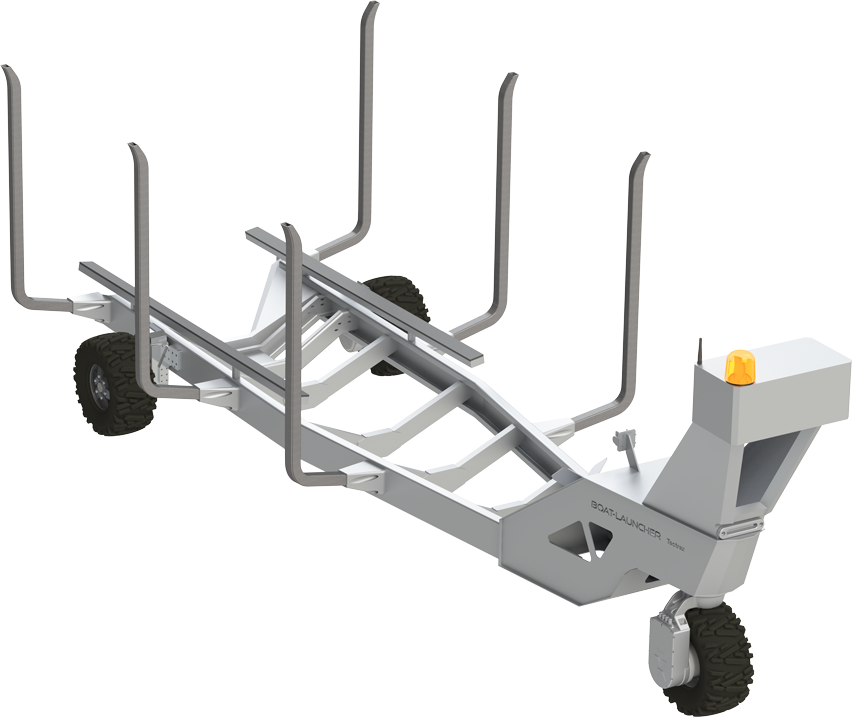

3WD
boat range: 6-7m
All terrain traction and control for mid-size boats
-
Size range: 6-7 m
Vessel weight: 2100 kg
Payload: 700 kg
Launcher weight: 700 kg
Gross Combined Mass GCM: 3500 kg
Total Combined Vessel + Payload: 2800 kg
Number of Wheels: 3
Number of driven wheels: 3
Launcher length past the hull (bow): 0.8 m
Launcher beam past the hull (inc poles): 0.2 m
Ground to keel Height (average Deep V Hull): 0.5 m
Frame thickness: 5 mm
Bunk adjustments: 4x 20 mm
Guide poles: 6
Recover points: Yes
Boat Catch: Yes
Plastic lined boat bunks: STD -
Number of batteries (std): 3
Batteries: 48V LiFePO4
Battery capacity: 4.8 kWH
Range (est): 6-8 km
Top Speed: 8 km/h
Power (Peak): 17280 kW
Total Weight per wheel: 1170
6WD
boat range: 9m+
Large vessels and commercial operators, up to 7000 kg payload.
-
Size range: 9+ m
Vessel weight: 5500 kg
Payload: 1500 kg
Launcher weight: 1100 kg
Gross Combined Mass GCM: 8100 kg
Total Combined Vessel + Payload: 7000 kg
Number of Wheels: 6
Number of driven wheels: 6
Launcher length past the hull (bow): 0.8 m
Launcher beam past the hull (inc poles): 0.2 m
Ground to keel Height (average Deep V Hull): 0.5 m
Frame thickness: 6 + 8 + 10 mm
Bunk adjustments: 8 + 30 mm
Guide poles: 10
Recover points: Yes
Boat Catch: Yes
Plastic lined boat bunks: STD -
Number of batteries (standard): 6
Batteries: 48V LiFePO4
Battery capacity: 9.6 kWH
Range (est): 6-8 km
Top Speed: 8 km/h
Power (Peak): 34560 kW
Total Weight per wheel: 1370 kg

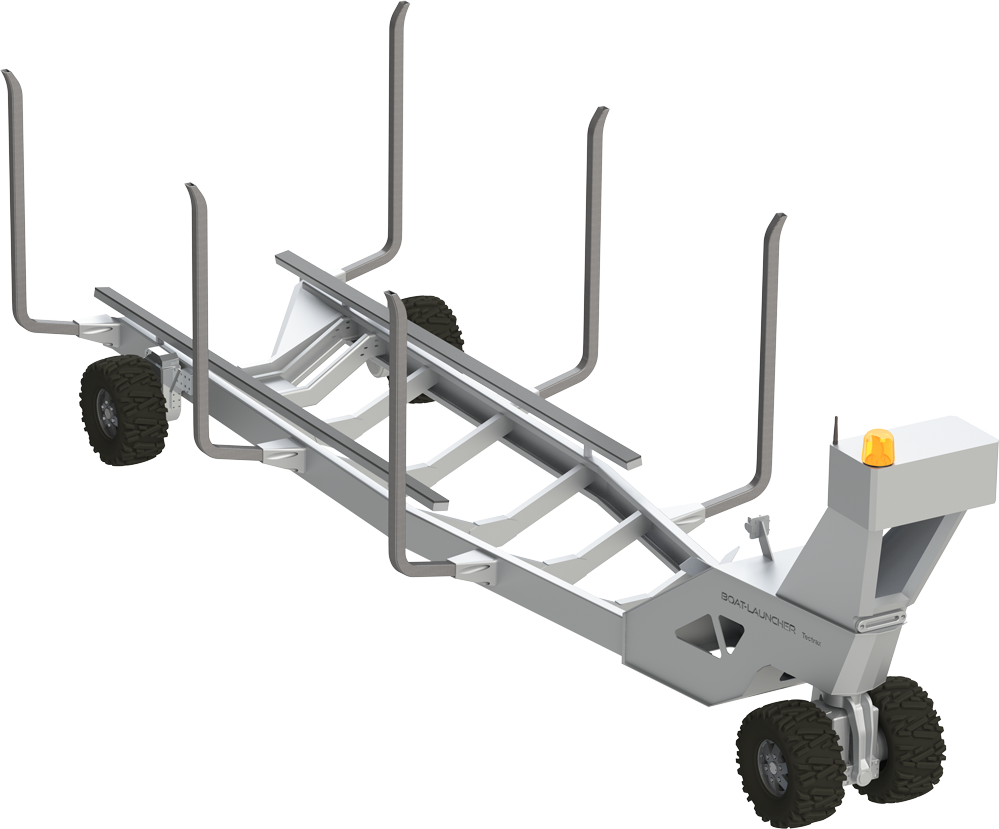

4WD
boat range: 7.1-8m
Tackles tough terrains, up to 4000 kg payload.
-
Size range: 7.1 - 8 m
Vessel weight: 3250 kg
Payload: 850 kg
Launcher weight: 800 kg
Gross Combined Mass GCM: 4900 kg
Total Combined Vessel + Payload: 4100 kg
Number of Wheels: 4
Number of driven wheels: 4
Launcher length past the hull (bow): 0.8 m
Launcher beam past the hull (inc poles): 0.2 m
Ground to keel Height (average Deep V Hull): 0.5 m
Frame thickness: 6 mm
Bunk adjustments: 6x 20 mm
Guide poles: 6
Recover points: Yes
Boat Catch: Yes
Plastic lined boat bunks: STD -
Number of batteries (standard): 4
Batteries: 48V LiFePO4
Battery capacity: 6.4 kWH
Range (est): 6-8 km
Top Speed: 8 km/h
Power (Peak): 23040 kW
Total Weight per wheel: 1250 kg
8-16WD
boat range: 9m+
Custom systems available on request.
Engineered for Effortless Boating.
48V Low-Voltage System
Powered with Peace of Mind
We know electricity and water are a concern. That's why we've designed the Boat-Launcher by Tectrax™ with a safe, low-voltage 48V system. It's a simple, reliable design that keeps voltage well below the threshold for electrical shock, providing a layer of safety that allows you to launch and retrieve with absolute confidence, every time.
TOTAL CONTROL
Launch and Retrieve from Anywhere
This is about true freedom and convenience. The Boat-Launcher by Tectrax™ is operated by a wireless remote controller that works within a 500m radius, as long as you have a line of sight. This means you can launch and retrieve your boat from on board or on the shore.
compatibility
Your Boat, Your Adventure
The Boat-Launcher by Tectrax™ is designed to work with your boat, not change it.
You get all the benefits of an amphibious solution without the cost, complexity, or permanent modifications. Our chassis partners are just as committed as we are to provide the very best Boat-Launcher solution to meet your needs.
DESIGN
Engineered for the Water
We know the marine environment is harsh. That's why our durable, submersible design is built to last. Our wheel hubs have three layers of seals and moisture sensors in each hub to provide an extra level of protection, ensuring the system can handle deeper launches and smoother landings.
Launch Without Limits
No Tow Vehicle Required
Imagine skipping the ramp queues and the stress of reversing. With the Boat-Launcher by Tectrax™, your boat becomes an independent vessel. It’s perfect for waterfront locations or any place where a tow vehicle can’t easily access the water. Keep your vehicle away from the salt water and sand.
pure electric
Power to Conquer Any Shoreline
Tough beaches and soft sand are no match for the Boat-Launcher by Tectrax™. Our hydraulic-free system delivers a staggering 5,000Nm of pure electric power directly to the wheels. This is the power you need to get in and out of the water with confidence, every single time.
One of the standout features of the Boat-Launcher system is its wireless remote control. Designed for simplicity and ease of use, the remote makes launching and retrieving your boat effortless
The wireless operation also enhances safety, allowing everyone to board on the shore before launch. There’s no need to wade into the water, keeping you and your crew dry until it’s time to return to land.
Effortless Control
Launch and retrieve your boat safely and easily with our intuitive wireless remote. No wading, no hassle, just smooth operation every time.
Seamless Launch and Retrieval
From driveway to water, watch how the Boat-Launcher transforms boat handling into a smooth, stress-free experience.
Frequently Asked Questions - FAQs
About the Boat-Launcher by Tectrax™
-
A: The design of the Boat-Launcher by Tectrax™ has been updated to lower the boat by at least 250mm compared to the prototype. This is achieved through raised wheel/drive assemblies and re-contoured frame rails. While it won't sit as low as a standard trailer, the system's design keeps shallow launching and retrieval practical and ensures a smooth transition between land and water.
-
A: Yes, the Boat-Launcher by Tectrax™ uses snubbing blocks to guide and straighten the bow, ensuring a firm and accurate final capture every time you retrieve your boat.
-
A: Yes, guide pole options are available for the Boat-Launcher by Tectrax™. For extra convenience, an auto bow connector with a cord release is also offered, so you don’t need to get off your boat to secure it.
-
A: The Boat-Launcher by Tectrax™ is designed to handle boats up to 8m in length.
-
A: Yes, the propeller has sufficient clearance when using the Boat-Launcher by Tectrax™, just as you would on a standard boat trailer.
Performance & Operation
-
A: The dual front wheels on the Boat-Launcher by Tectrax™ are standard and work well in sand. Tracks could come as standard on the heavy-duty version and could be added to the standard version later for an additional cost, we are testing options during 2025.
-
A: The Boat-Launcher by Tectrax™ has an approximate operational range of 8 km, depending on the load and terrain. It charges via a standard household plug with a fast charger. Remote charging is not available.
-
A: Solar isn’t an option for the Boat-Launcher by Tectrax™ due to a lack of space for panels. It is designed to be charged via a standard 3-pin household plug with a fast charger. For storage, batteries should be kept between 60–80% charge.
-
A: While a winch isn’t required for typical use of the Boat-Launcher by Tectrax™, one can be fitted on request for manual retrieval.
-
A: All components of the Boat-Launcher by Tectrax™ use marine-grade materials, including hard-anodized alloy and 316 stainless steel, with built-in protection against dissimilar metals. They have been salt-spray tested and proven in service for over six years. An integrated washdown system can also be added for extra peace of mind.
-
A: Yes, it is possible to add them to the Boat-Launcher by Tectrax™, and it’s a straightforward installation for an additional cost.
-
A: Punctures on the Boat-Launcher by Tectrax™ can be repaired like car tires. Traction is managed with an E-differential system, and in case of a breakdown, Tectrax provides full support.
-
A: Annual inspections and wheel hub seal replacements are recommended. The Boat-Launcher by Tectrax™ comes with a 3-year warranty.
-
A: Security is ensured by the large scale of the Boat-Launcher by Tectrax™ and the remote-control system, which makes it impossible to operate or move without prior training and knowledge.
-
A: Yes, the Boat-Launcher by Tectrax™ can sit idle for up to two months, provided the batteries are stored at 60–80% charge.
Maintenance & Safety
-
A: Yes. The Boat-Launcher by Tectrax™ has a brake override feature that releases the parking brakes, allowing the boat to be recovered or slowly towed in an emergency. This function is designed for recovery only and is not intended for regular towing or road use.
-
A: Yes, the Boat-Launcher by Tectrax™ has an emergency towing eye at the front for short-distance recovery. It’s not designed for regular towing or freewheeling.
-
A: A flashing warning light is included, but the Boat-Launcher by Tectrax™ is not designed for public road use. Registration is at the owner’s discretion.
Towing & Road Use
-
A: The first 10 production units of the Boat-Launcher by Tectrax™ are scheduled for delivery before Christmas 2025. Get in quick to secure yours.
Ordering & Delivery
-
A: The remote controller for the Boat-Launcher by Tectrax™ is designed and manufactured in-house by Tectrax.
Technical & Design
